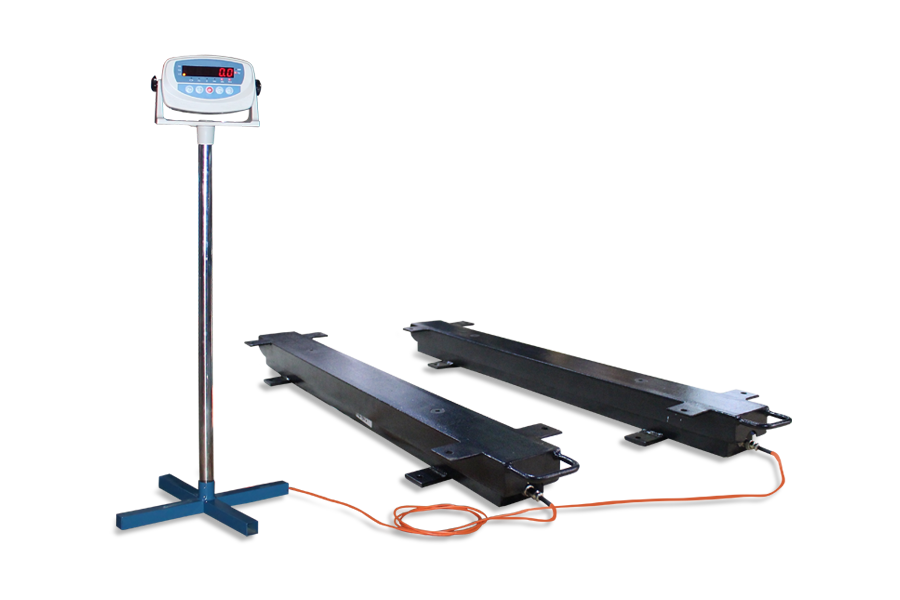

TECHNICAL PARAMETERS : SONIC T18 LOAD BAR
|
| Accuracy class |
: III, n=3000 |
| A/D Conversion Mode |
: Adopts ∑ – ∆ Technology, 10 Times per Second |
| Input Sensitivity |
: ≥ 1.5uV/e |
| Excitation |
: DC 5V |
| Input Signal |
: -16mV ~ 18mV |
| Load Cell connection mode |
: 6 Wire Connection (Long Wire Auto Compensation) |
| Division |
: 1/2/5/10/20/50 Optional |
| Power supply |
: AC 85 ~ 245V, 50Hz ~ 60Hz; Built in battery DC 6V/4AH |
| Working temperature |
: 0 ~ 40°C; Working humidity ≤90%RH |
| : -10°C ~ 40°C; Humidity 10% ~ 85%, No condensation |
| Storing temperature |
: -30°C ~ 60°C, Humidity 10% ~ 70%, No condensation |
